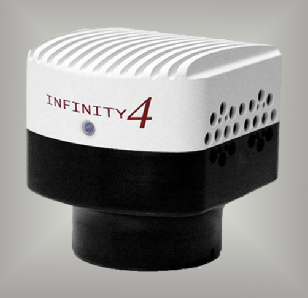

Lumenera Infinity 4-11 Research CCD Cameras
The Lumenera Infinity 4 series of large format CCD sensor digital cameras provide a superior platform for research level image capture. The Infinity 4 features very large 9um pixel sites for excellent dynamic range and signal/noise performance.
The Infinity 4 models are best suited for most microscope applications with low to high levels of available illumination. For extreme low light applications see the Infinity 3 models.
10.7 MP Research Grade CCD Digital microscope cameras
APPLICATIONS
- Microscope: Stereo or Compound
- Monozoom optical systems
- Stand alone optical systems
Ideal choice for:
- Research microscopy systems
- Engineering laboratory
- Biomedical research
Infinity 4-
- 10.7 Megapixel Monochrome (Kodak KAI-
11002) - 43.3mm CCD Sensor 9um x 9um pixels
- 4008 x 2672 resolution
- Software: Infinity Analyze, Infinity Capture, TWAIN
- USB 2.0 interface
- External 5vdc power supply (included)
- Dimensions : L = 3.85”, W =3.85”, H = 4.09”
Infinity 4-
- 10.7 Megapixel Color (Kodak KAI-
11002) - 43.3mm CCD Sensor 9um x 9um pixels
- 4008 x 2672 resolution
- Software: Infinity Analyze, Infinity Capture, TWAIN
- USB 2.0 interface
- External 5vdc power supply (included)
- Dimensions : L = 3.85”, W =3.85”, H = 4.09”
MODELS
DOWNLOAD 4-
