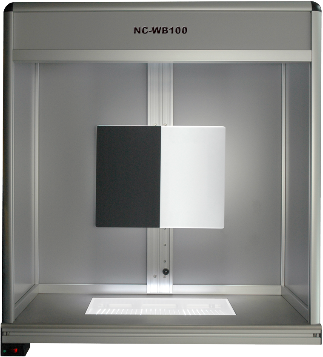

Conformal Coating UV Inspection Booths

Our manual inspection booths can provide the perfect environment for PC board conformal coating inspection. We can configure our systems with special output UV LED illumination panels for the highest coating inspection performance with long life and low energy costs. We can additionally provide white light visible inspection capability as well as camera based inspection. Our custom designed and built inspection stations are in use at major pharmaceutical and biomedical companies and have a proven high reliability record.

The inspection booth systems and tables can be provided with motorized adjustable height work surfaces to accommodate operators of all heights for comfort and efficiency. The motorized motion is quiet and smooth, allowing operators to find the correct working position to eliminate fatigue. All systems are designed and built in the USA using only the finest materials for a long operational life.

APPLICATIONS

• PC board manufacture
• Biomedical
• Semiconductor
• Micro-assembly
• Re-work
• Cleanroom applications

Ideal choice for:

• Vial inspection and fill laboratories
• Scientific laboratories
• Biomedical sub-assembly build
• Semiconductor FAB
• Electronic re-work stations
• Education (lower cost Infinity Lite model for entry level education)

FEATURES

• LED High Intensity Column Illumination
  - TOP and/or BOTTOM lighting options
  - Fully adjustable regulated output with µFine intensity controls
  - Non-glare design for operator comfort
  - Earth friendly light source, no mercury (used in fluorescent designs)
  - Low energy use, Long consistent life
  - Highest quality, high output UV LEDs; range of UV spectrums available
• CLEAN ROOM compatible materials and surfaces
  - Modular high strength aluminum framing
  - Aluminum sound deadening enclosure panels
  - Durable grey neutral powdercoat finish
  - Corian® table surfaces; optional stainless steel or hard-anodize aluminum
• ERGONOMIC user design
  - Optional contrast plate with vertical position control; telescope,tilt options
  - Reject tray holder for left and right side with vertical position adjust
  - Optional Motorized table height 26" - 52"; silent, smooth motion
• Built to last - only top quality components used
  - Made in USA
  - Customizable to meet your requirements

MODELS

WALL Mount Booth – UV bottom illumination (WB-UV1)

WALL Mount Booth – UV top illumination (WB-UV2)

WALL Mount Booth – UV top/bottom illumination (WB-UV12)

Ergonomic Motorized Table Booth – UV bottom only illumination (MEB-UV100)

Ergonomic Motorized Table Booth – UV top only illumination (MEB-UV101)

Ergonomic Motorized Table Booth – UV top and bottom illumination (MEB-UV110)
