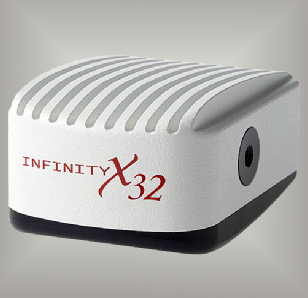

Lumenera Infinity X32 CCD Microscope Cameras
The Lumenera Infinity X32 series of CCD digital cameras provide a cost effective and versatile solution for general documenting and archiving of microscope images.
The Infinity X32 models are based on the excellent CCD sensor used in the 2-
32 MP Scientific Grade CCD Digital microscope cameras
APPLICATIONS
- Microscope: Stereo or Compound
- Monozoom optical systems
- Stand alone optical systems
Ideal choice for:
- Research microscopy systems
- Engineering laboratory
- Biomedical research
Infinity X32M
- 2 Megapixel Monochrome (Sony ICX274)
- 0.55” CCD Sensor 4.4um x 4.4um pixels
- 6464 x 4864 resolution (max)
- Software: Infinity Analyze, Infinity Capture, TWAIN
- USB 2.0 interface
- External 5vdc power supply (included)
- Dimensions : L = 3.85”, W = 2.00”, H = 2.75”
Infinity X32C
- 2 Megapixel Color (Sony ICX274)
- 0.55” CCD Sensor 4.4um x 4.4um pixels
- 6464 x 4864 resolution (max)
- Software: Infinity Analyze, Infinity Capture, TWAIN
- USB 2.0 interface
- External 5vdc power supply (included)
- Dimensions : L = 3.85”, W = 2.00”, H = 2.75”
MODELS
