DCG-200M Digital Crosshair Generator

Digital Crosshair Generator for single camera applications.

DOWNLOAD DCG-200M Spec sheet

The DCG-200M is an adjustable video reticle generator for single camera inspection and alignment tasks. Full digital circuitry for stability.

The DCG-200M is compatible with NTSC, PAL, and EIA video formats. Format is auto-switching and input/out via S-Video or BNC composite connections.

The reticle generator portion provides 7 adjustable patterns or no pattern. Line type is selectable Black or White, solid or dashed with adjustable matte. Reticle setup is retained when powered off.

We can also provide complete turn-key specialty systems using our wide selection of stands, stages, highly accurate measurement systems, light sources, and cameras to fulfill your inspection needs.

 CLICK for On-line

 Store and Pricing

 Home

<< Prev

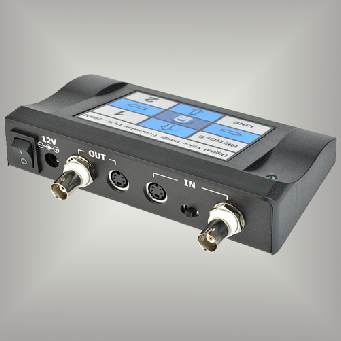

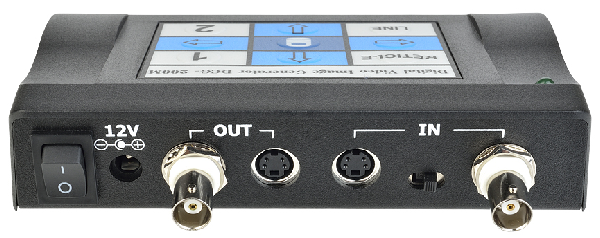

DCG-200M Rear View

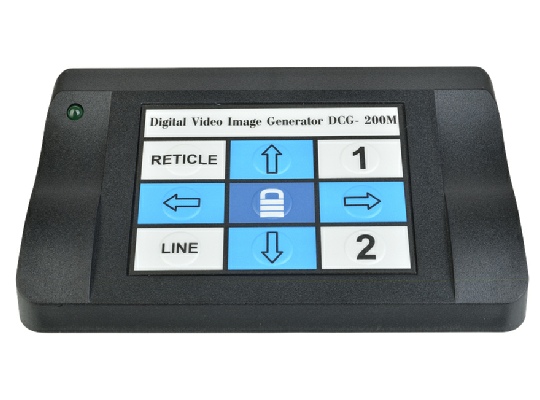

DCG-200M Front View

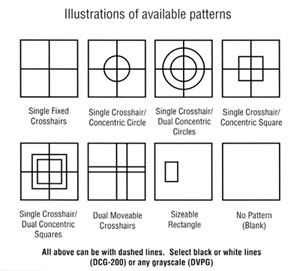

Available Reticle Patterns

APPLICATIONS

• Semiconductor
• Biomedical
• Industrial Inspection

Ideal choice for:

• Biomedical sub-assembly build
• General semiconductor QA inspection
• Industrial inspection and verification

FEATURES

SPECIFICATIONS

• DCG-200M Module:
• Video reticle generator
• NTSC, PAL, EIA video formats

• Video Reticle functions:
• 7 adjustable patterns and no pattern (blank)
• Solid or dashed lines
• Black or White line colors

• Power
• Universal 6VDC power supply included
• 5.75”W x 4.25”L x 1.4”H
• 1 lb shipping weight

• Inputs / Outputs:
• S-video
• Composite RS170 via BNC connector
